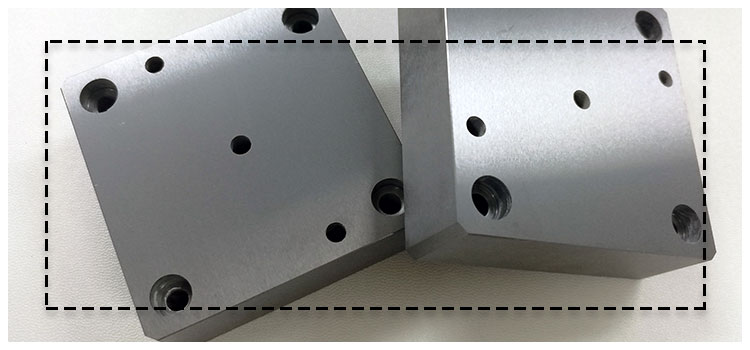

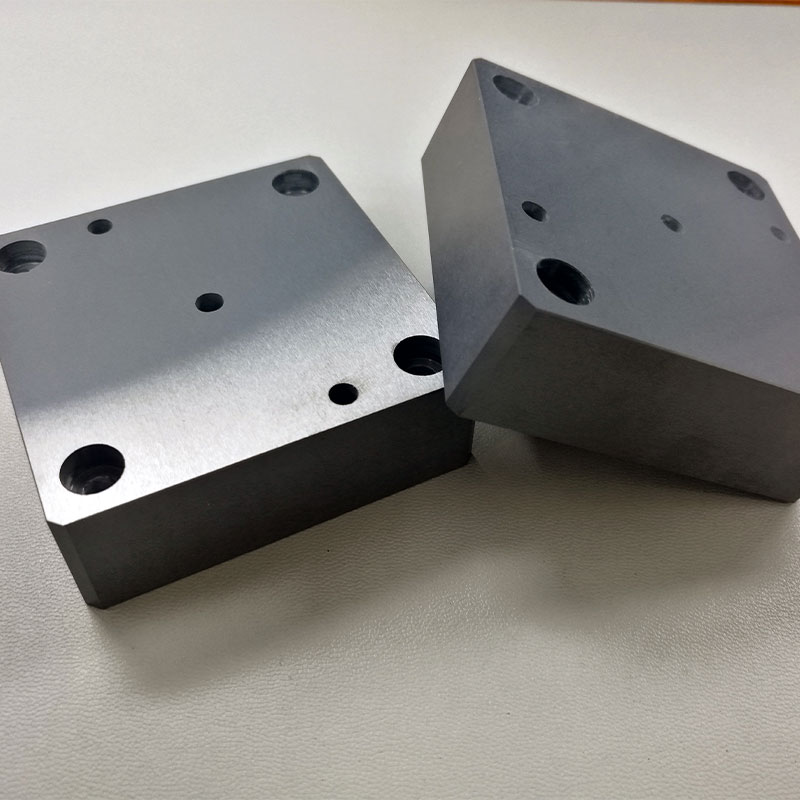

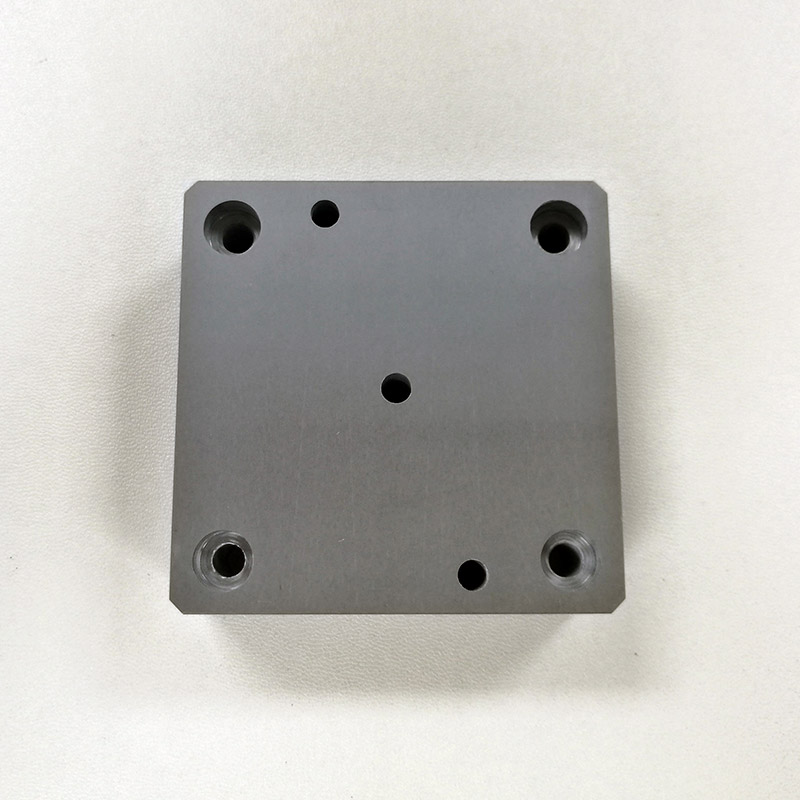

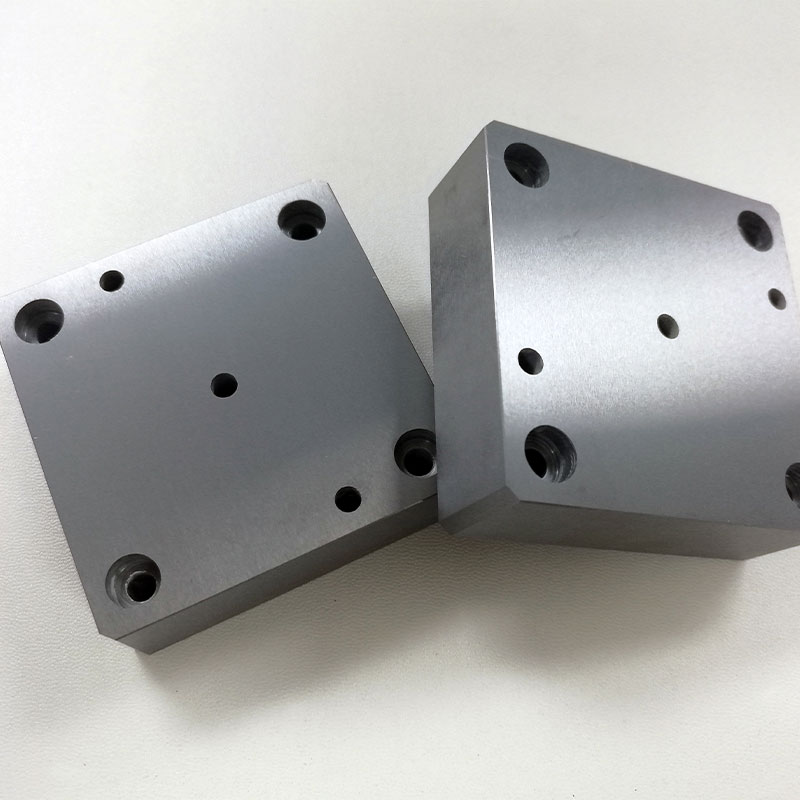

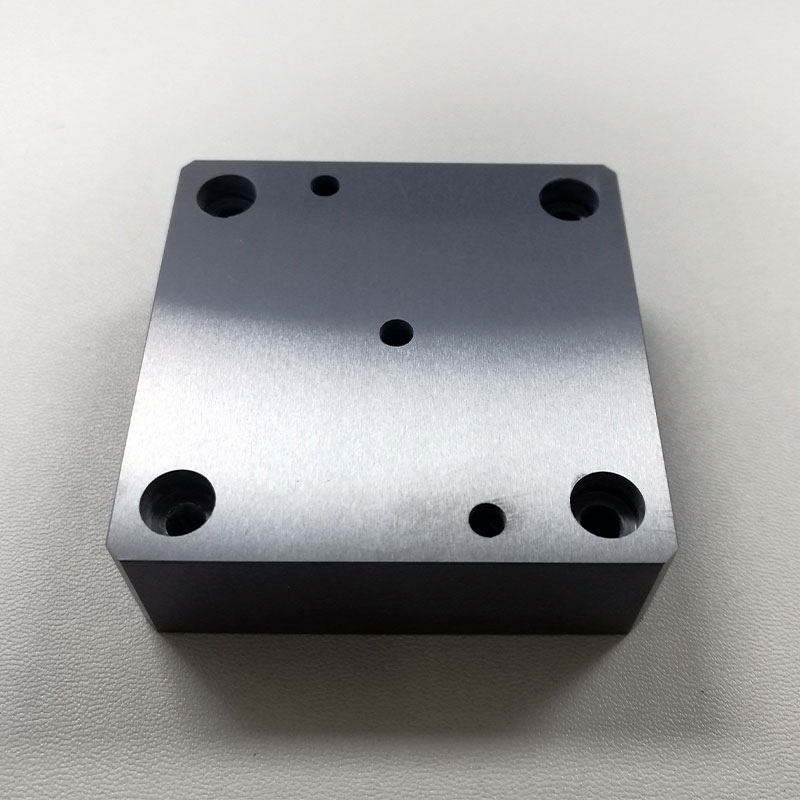

Silicon nitride ceramic structural parts

Silicon Nitride
Si₃N₄

Silicon nitride is mainly composed of Si3N4, which has excellent heat shock resistance and high temperature strength. These characteristics make it an ideal material for automobile engine and gas turbine. It can be used in turbocharger rotor, hot plug and hot plug in diesel engine, as well as in many other applications.

Silicon Nitride has the most versatile combination of mechanical, thermal, and electrical properties of any technical ceramic material. It is a high performance technical ceramic that is extremely hard and has exceptional thermal shock and impact resistance. It surpasses most metals high temperature capabilities and has a superior combination of creep and oxidation resistance. Additionally, its low thermal conductivity and high wear resistance make it an excellent material that can withstand the toughest of conditions in the most demanding industrial applications. Silicon Nitride is an excellent choice when high-temperature and high-load abilities are needed.

Feature

Very low density (3.21 g/cm^3)
Very high fracture toughness (7 MPam1/2)
Good bending strength (850 MPa)
Excellent thermal shock resistance: high thermal stress parameters (569 K)
Maximum operating temperature in oxidizing atmosphere: 1200 ° C
Maximum operating temperature in neutral atmosphere: 1600 ° C)

Structure

China Ceramics Parts has rich experience in milling, grinding and polishing precision (Advanced) ceramics and firing ceramics, which enables us to achieve:

• The shape of the product can be customized according to technical drawings or samples;
• When the dimensional accuracy of product shape is the best, it can reach ±0.003mm, which is generally controlled within ±0.05mm;
• When the internal structure accuracy of the product is the best, it can reach ±0.01mm, which is generally controlled within ±0.05mm;
• The surface roughness of silicon nitride ceramic can reach within Ra0.02um after polishing, and within Ra0.4-Ra0.6 under general polishing state;
• We can add arcs, grooves, threads and other structures internally;
• Contact us for more information on structure or accuracy;

All tolerances can be improved upon depending on the size, shape & geometry of the precision ceramic part. China Ceramics Parts is dedicated to ensuring we make only the highest quality parts that meet or exceed our customers specifications.

Why Choose Us

China Ceramics Parts has accumulated many years of experience in the pursuit of developing the best precision (Advanced) ceramic parts in the world, and is constantly applying this knowledge every day. In fact, we have been involved in the production of precision ceramics by many customers.

Contact us to find out what we can do for you.

• We can reply to your inquiry within 24 hours (except on Saturdays and Sundays);
• We can provide customized product service for you;
• We can accept the customized service of 1 product.
